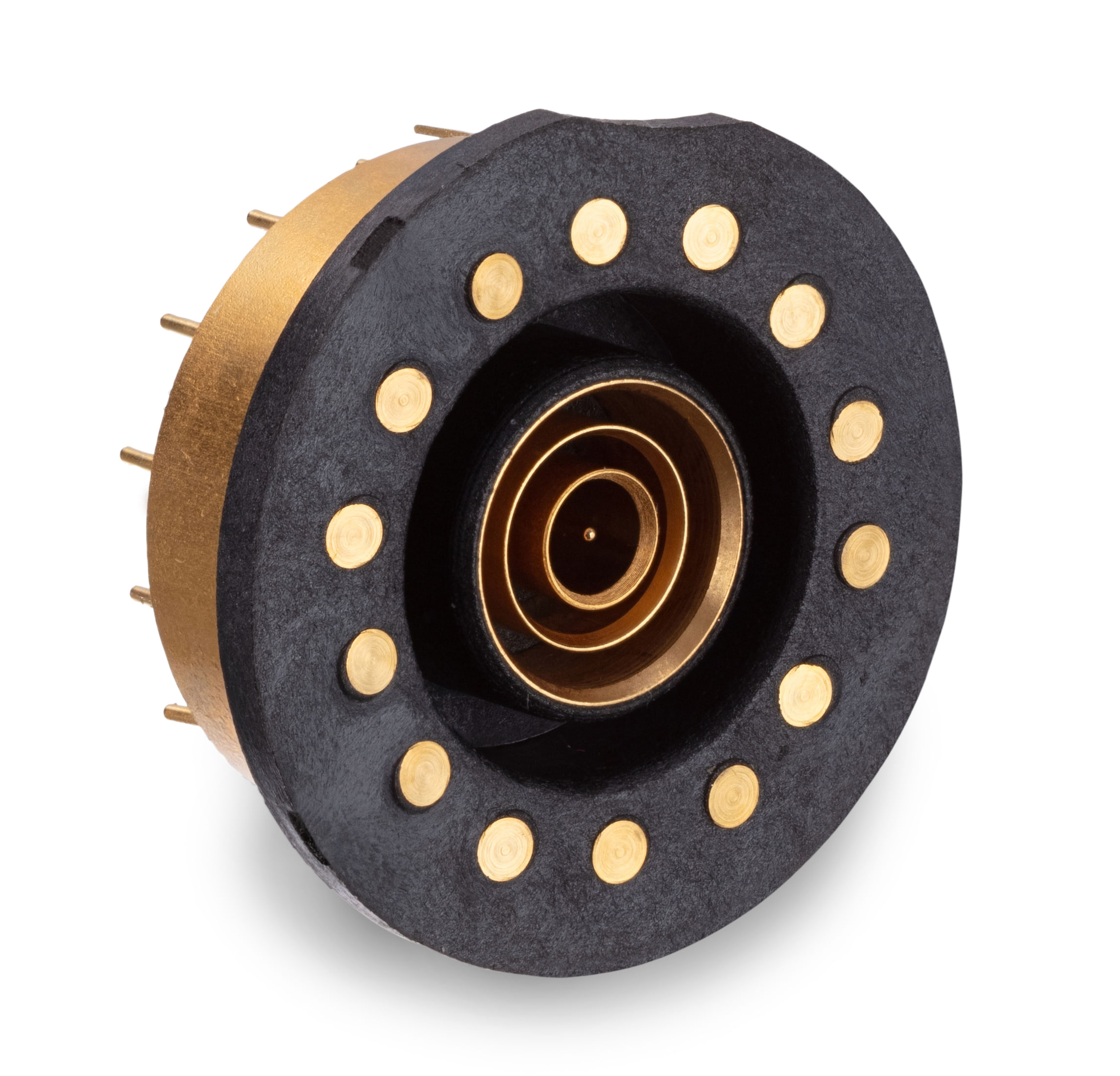

Military Battery Connector

Part #: MC4866112-434-1

18-Position, Battery Connector; Receptacle with Ring Contacts

Printed Circuit Tail Termination, Unfiltered

Radio-Side Mount for CSEL AN/PRQ-7 RADIO, BB-2001A/U, BT-70581,

BT-70581A, BT-70581B, BT-70581Cx or BT-70676Bx

5 Amps, 20 Meter Water Immersion

500 Mating Cycles

Attributes

Gender	Receptacle
# of Contacts	18-position
Contact Type	Ring Contacts
Ground Pin	Yes
Mount Location	Radio Side
Filtered	No
Current Rating	5.0 Amps
Water Immersion	20 Meters
Mating Cycles	500
Battery/Radio System	BB-2001A/U, BT-70581, BT-70581A, BT-70581B, BT-70581Cx, BT-70676Bx, CSEL AN/PRQ-7 RADIO
Termination Style	Circuit Mount
Product Type	Battery Connector
